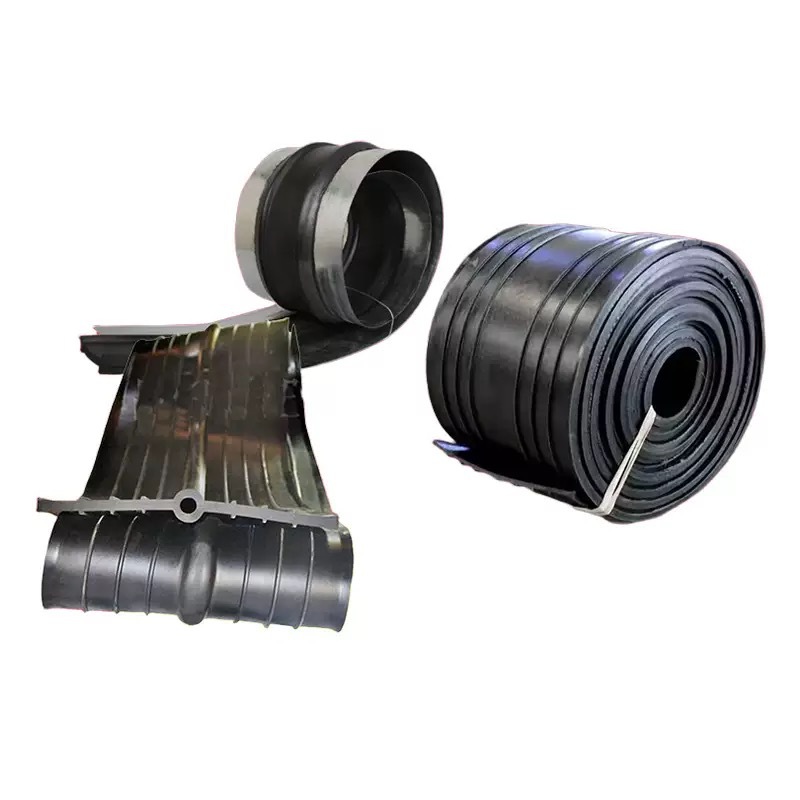

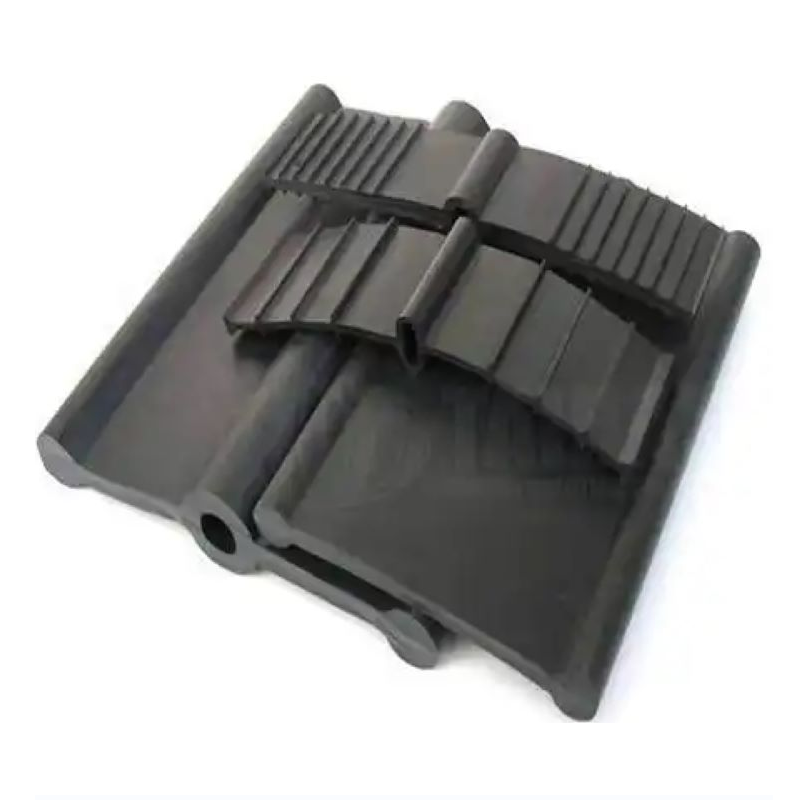

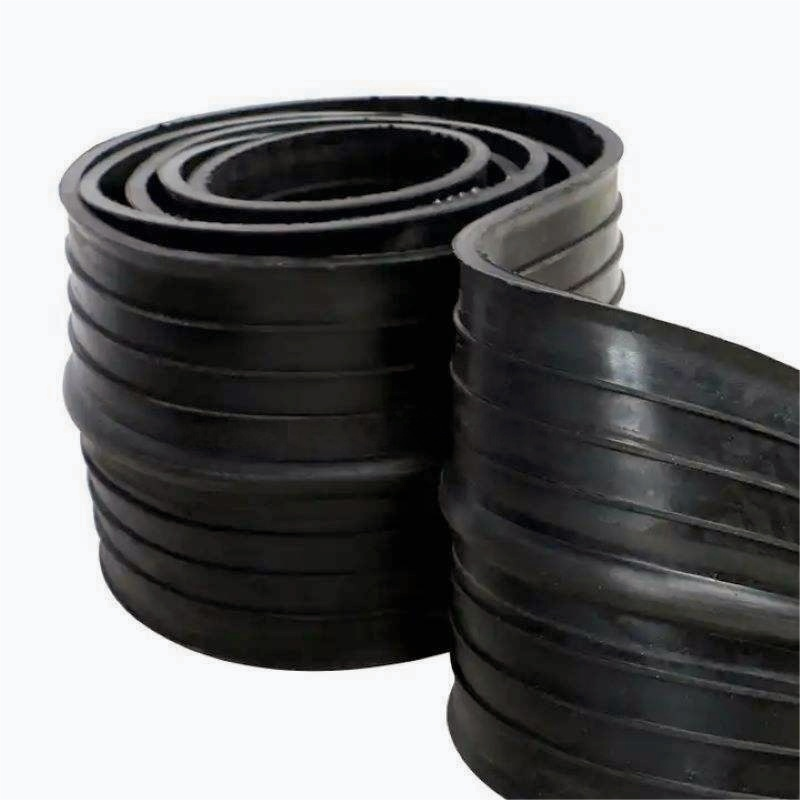

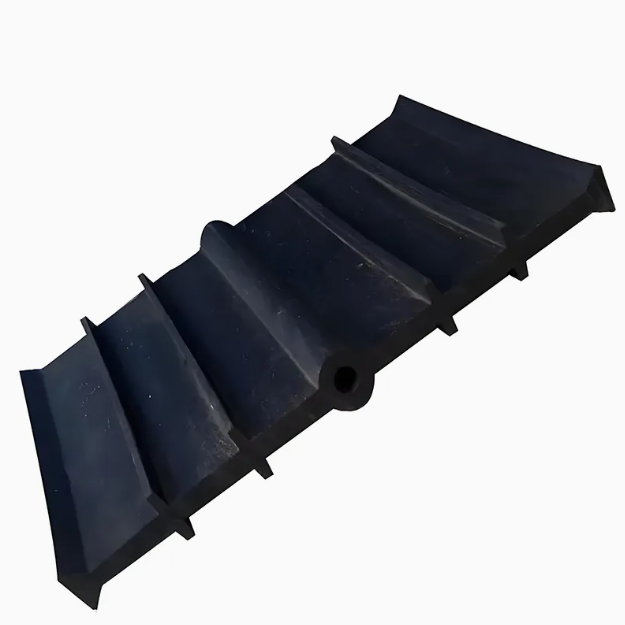

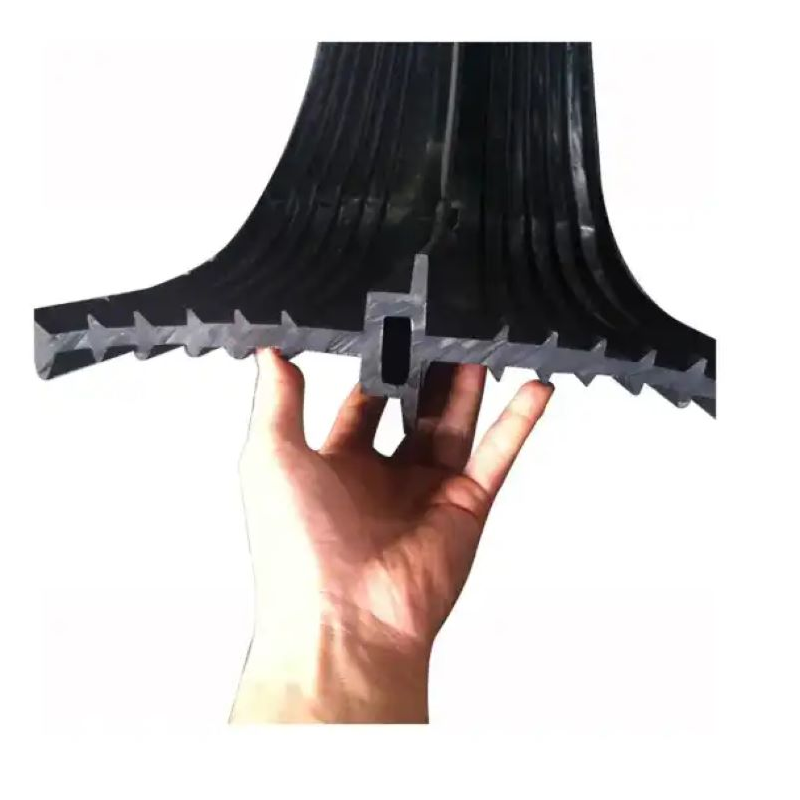

Waterstop for Construction
This advanced composite waterstop is engineered for critical construction joints, delivering superior long-term waterproofing. It combines the high tensile strength and durability of PVC with the exceptional flexibility and weather resistance of neoprene and natural rubber. Ideal for foundations, tunnels, reservoirs, and water treatment plants, it effectively withstands high hydrostatic pressure, movement, and harsh environmental conditions. Its robust design ensures a permanent, watertight seal in concrete structures, providing reliable protection against water ingress. H
Contact Us
head@1x (1)

Technical Specifications

CategoryPropertySpecification / Description
Basic InformationRMaterialPVC
Common ColorsBlack, Gray, Custom Red/White
Common Cross-section ShapesCustom Profiles
Physical PropertiesHardness (Shore A)40~80
Density (g/cm³)1.2 ~ 1.3
Tensile Strength (MPa)7 ~ 12
Elongation (%)200 ~ 400
Weather ResistanceTemperature Range (℃)-40 ~ +120 (Heat-resistant up to +150)
Aging ResistanceExcellent (Stable under UV and oxidation)
Ozone ResistanceExcellent (Not prone to cracking)
Chemical PropertiesOil ResistancePoor (Not suitable for long-term mineral oil contact)
Acid and Alkali ResistanceGood (Suitable for most weak acids and bases)
Flame Retardant GradeCustomizable UL94 V-0 or standard flame-retardant
Functional FeaturesWaterproof PerformanceGood (IP65~IP67)
Sealing PerformanceGood (Effective against air, liquids, and dust)
Pressure ResistanceMedium (Suitable for doors/windows/automotive, not for high-pressure pipelines)
Processing & InstallationSurface TreatmentSmooth, Textured, Flocked, Sprayed, Adhesive-coated
Installation MethodEmbedded, Clamped, Adhesive, Press-fit
Supply FormRolls (meters), Fixed-length cuts, Closed loops

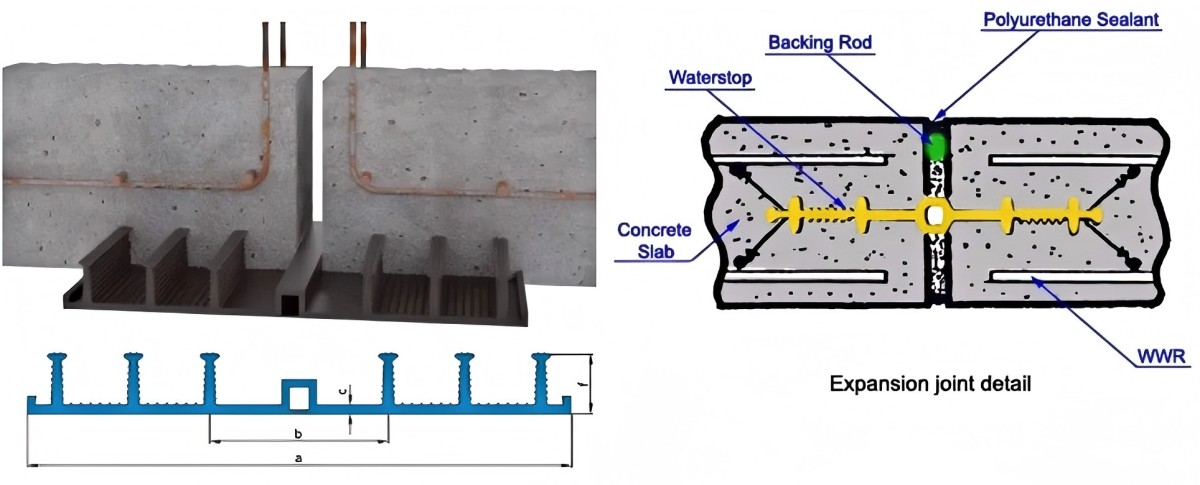

Different types of waterstops

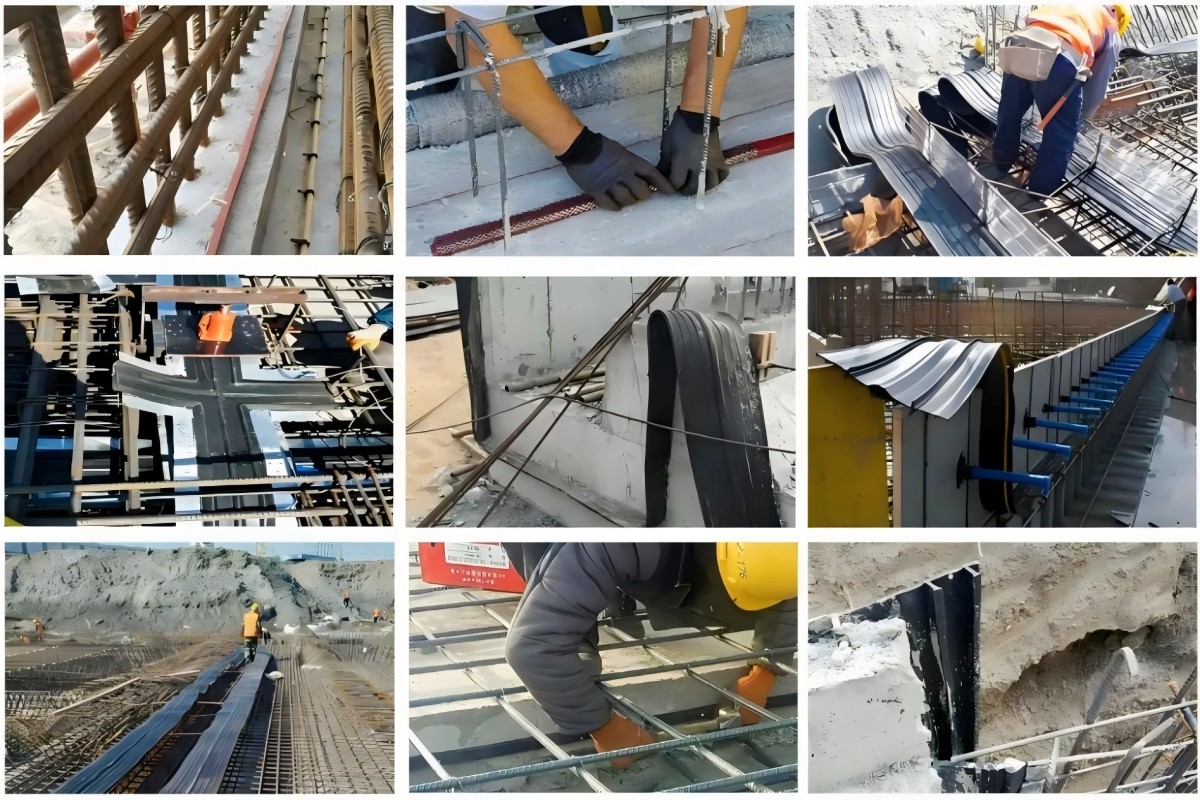

Installation




Wide range of applications
