Electrical cabinet sealing strips

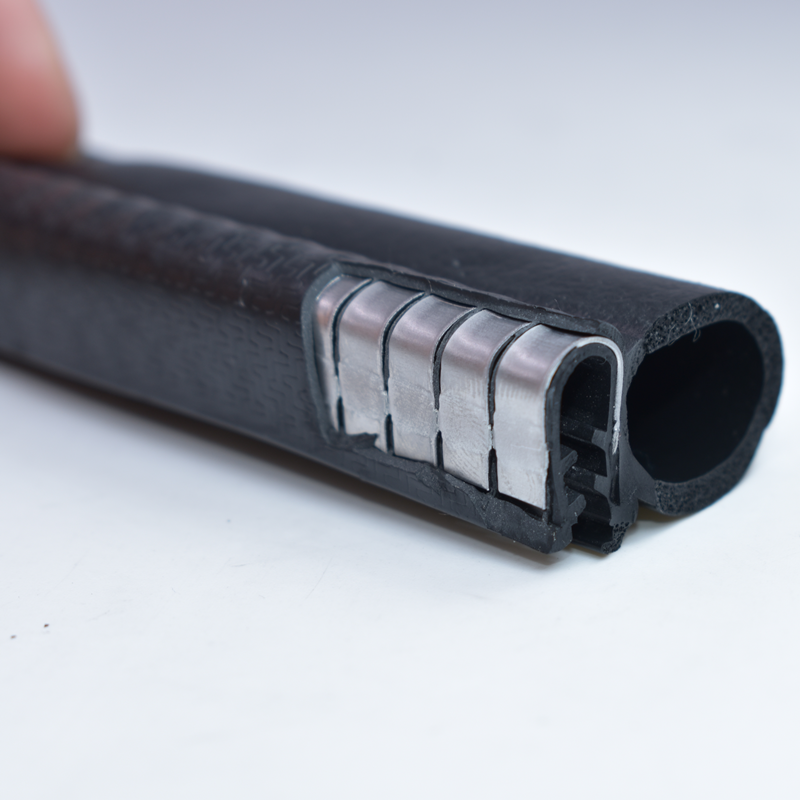

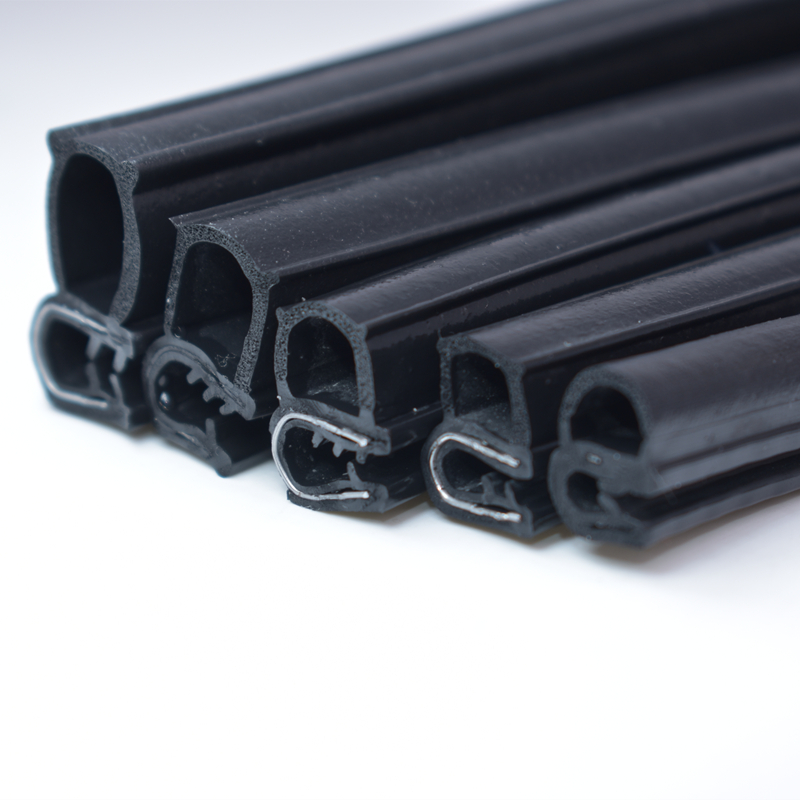

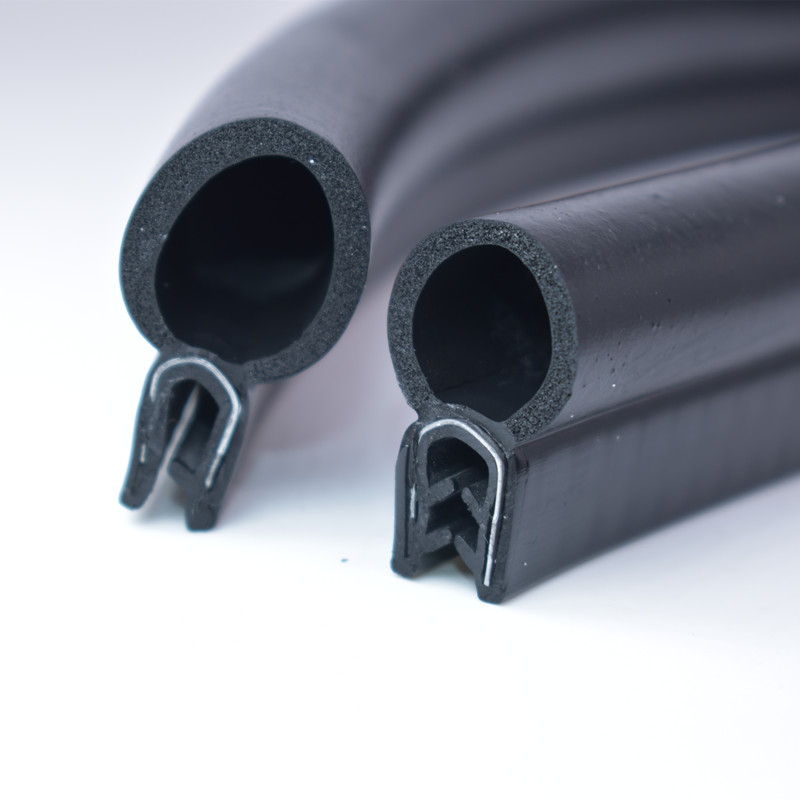

Our EPDM U-shaped sealing strip is a perfect sealing solution for electrical cabinets, enclosures, and outdoor equipment boxes. Its unique U-shaped channel securely snaps onto the cabinet door edge, providing excellent sealing performance and effectively protecting against moisture, dust, insects, and inclement weather, ensuring the safe and stable operation of the delicate electronic equipment within.

Phone: +86-13931969171

WhatsApp: +86-13931969171

E-mail: sales@cnweizhong.com

Snap-On EPDM U Seal for Electrical Enclosures, Waterproof Dustproof Rubber Gasket, Easy Install

Product Description

Technical Specifications

Category	Parameter	Details / Value
Material & Construction	Primary Material	Ethylene Propylene Diene Monomer (EPDM)
	Reinforcement	None (Standard) / Optional Metal or Plastic Clip for extra grip
	Color	Black (Standard), Custom colors available upon request
Physical Properties	Hardness (Shore A)	60° ± 5 (Standard), Range available: 50° - 70°
	Specific Gravity	1.20 - 1.35 g/cm³
	Tensile Strength	≥ 12 MPa
	Elongation at Break	≥ 300%
	Compression Set	≤ 25% (22 hrs @ 70°C)
Environmental Resistance	Operating Temperature	-50°C to +130°C (-58°F to +266°F)
	Weather & Ozone	Excellent Resistance. No cracking or degradation after prolonged exposure.
	UV Resistance	Excellent
	Water & Moisture	Superior Sealing Performance, effectively prevents water ingress.
Dimensions & Installation	Profile Type	U-Shape (C-Shape / Channel Profile)
	Total Height (A)	e.g., 15 mm / 20 mm / 25 mm (Customizable)
	Total Width (B)	e.g., 12 mm / 15 mm / 18 mm (Customizable)
	Slot Width (C) - Critical	6 mm, 8 mm, 10 mm (Most Common), Others available
	Lip Thickness (D)	1.5 mm, 2.0 mm, 2.5 mm (Designed for various panel thicknesses)
	Panel Thickness Range	1.0 mm to 3.0 mm (Depending on Slot Width and Lip Thickness)
	Standard Length	50 meters / roll or 100 meters / roll (Custom lengths available)
Standards & Certifications	Fire Performance	UL 94 HB (Standard), Fire-retardant grades available (e.g., UL 94 V-0)
	Environmental Compliance	RoHS & REACH Compliant
	Industry Standards	Conforms to IEC 60529 for IP Rating protection (IP55, IP66, etc.)

Key Advantages

Excellent Weather and Aging Resistance: Made from high-quality EPDM, it maintains its elasticity over time, resists hardening and cracking in extreme temperatures (-50°C to +130°C), UV rays, and ozone, ensuring a service life of decades.

Excellent Sealing Protection: Provides high-elastic, continuous pressure for a tight seal, achieving IP55, IP66, and even higher protection levels, effectively repelling water, dust, and sound.

Convenient Installation: Unique U-shaped structure: Snaps onto the edge of sheet metal like a cap, making installation simple and effortless, requiring no glue or fasteners, significantly reducing installation time and labor costs. Safe and Reliable: Excellent electrical insulation performance ensures the safety of electrical equipment. Non-toxic, odorless, and RoHS compliant.

Durable and Economical: More resistant to aging than ordinary PVC or silicone sealing strips, it provides long-term sealing protection, reduces maintenance and replacement frequency, and lowers total cost of ownership.

Typical Applications

Industrial electrical cabinets, distribution boxes, control cabinets

Outdoor communication cabinets, 5G base station enclosures

Transportation equipment: Electrical control boxes for trains, subways, and ships

New Energy: Photovoltaic inverter cabinets, charging station enclosures

Automation equipment, machine tool electrical control cabinets

Protective enclosures for outdoor lighting equipment

Why Choose Our EPDM Sealing Strips?

1. Precise Mold Design: Ensures precise U-notch dimensions, moderate and stable clamping force, and resists falling off after installation.

2. Strict Quality Control: From raw materials to finished product, every process undergoes rigorous testing to ensure consistent and reliable product performance.

3. Customization Capabilities: If you have special size, color, or performance requirements, we offer customized solutions.

4. Global Certifications: Our products comply with international standards and meet the quality requirements of customers in diverse markets around the world.
