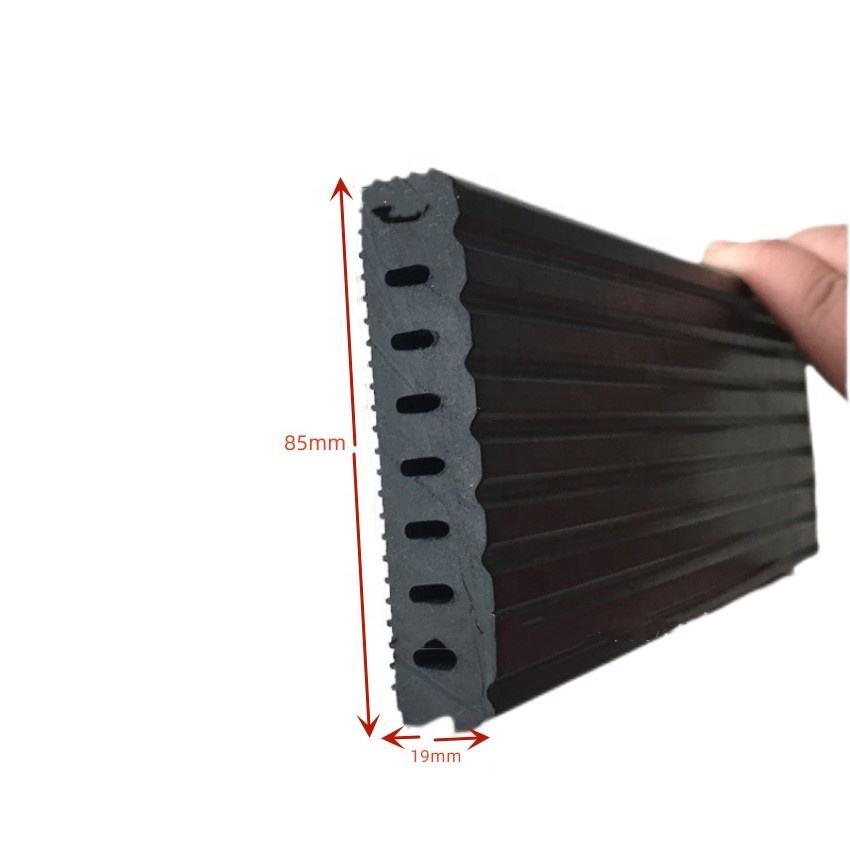

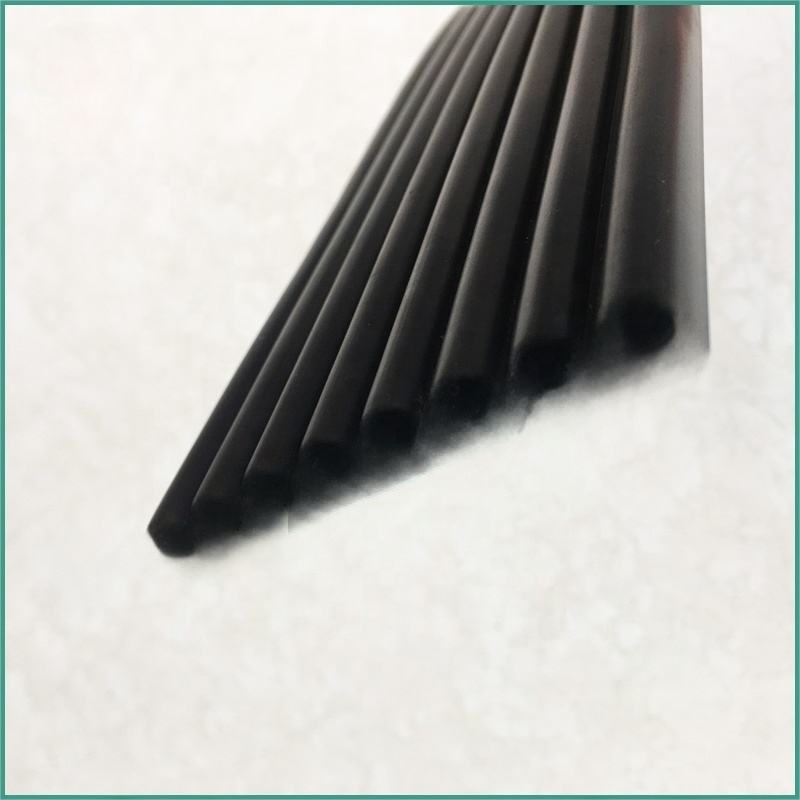

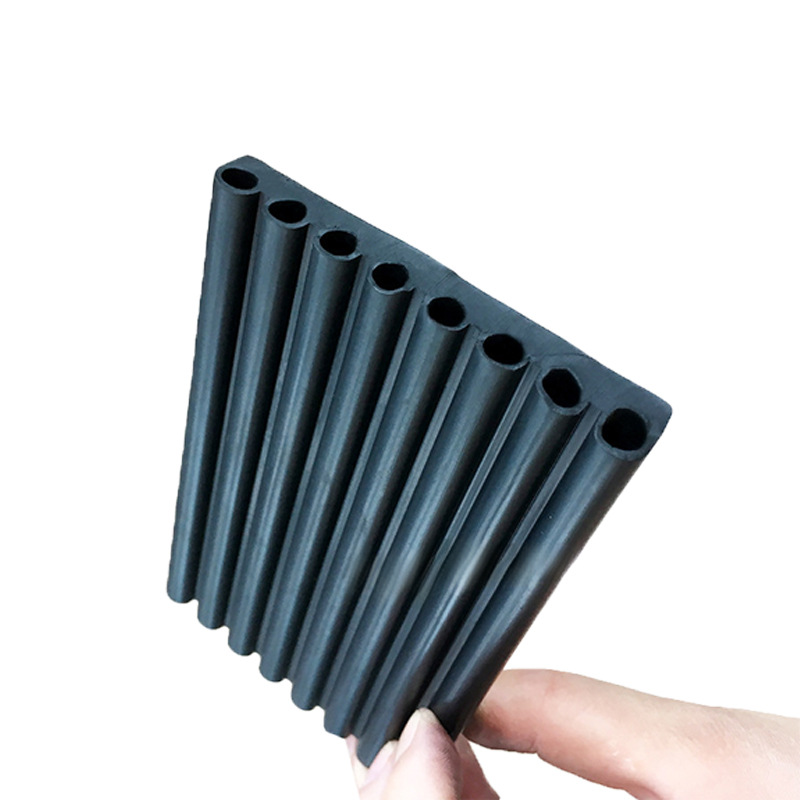

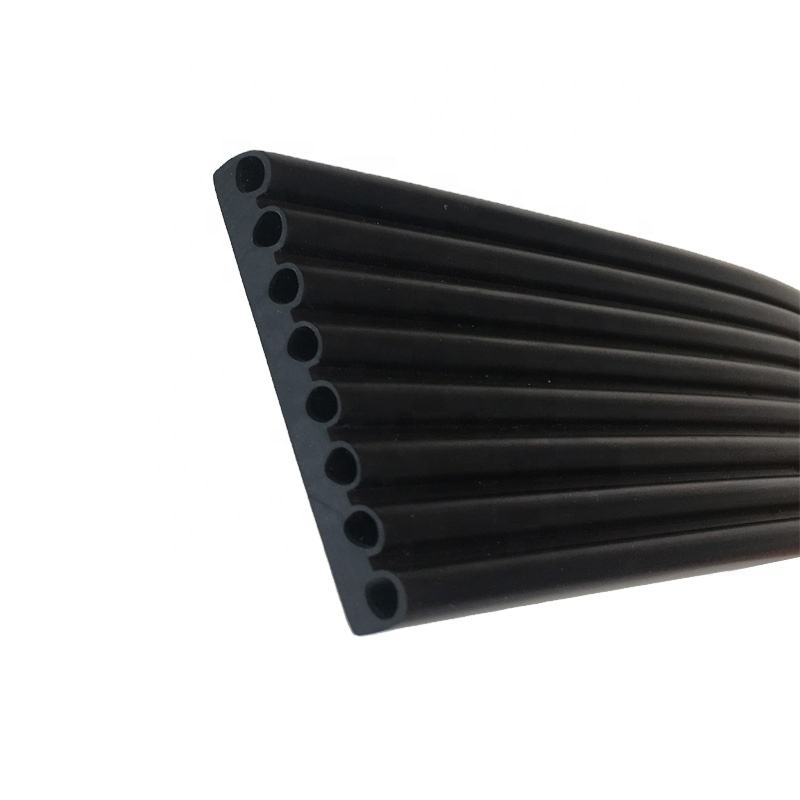

EPDM Perforated Swelling Rubber Waterstop
This EPDM Perforated Flat Swelling Rubber Waterstop is a high-performance sealing solution designed for building bridges, road and bridge expansion joints (accordion-type). Made from durable EPDM rubber, it features a perforated, tube-integrated structure that swells to block water penetration, adapting to joint movements (expansion/contraction) in infrastructure projects. Its robust design resists weather, corrosion, and aging, boosting waterproofing reliability in construction, highway, and bridge engineering. H
Contact Us
head@1x (1)

Technical Specifications

CategoryPropertySpecification / Description
Basic InformationRMaterialR-EPDM
Common ColorsBlack, Gray, Custom Red/White
Common Cross-section ShapesCustom Profiles
Physical PropertiesHardness (Shore A)40~80
Density (g/cm³)1.2 ~ 1.3
Tensile Strength (MPa)7 ~ 12
Elongation (%)200 ~ 400
Weather ResistanceTemperature Range (℃)-40 ~ +120 (Heat-resistant up to +150)
Aging ResistanceExcellent (Stable under UV and oxidation)
Ozone ResistanceExcellent (Not prone to cracking)
Chemical PropertiesOil ResistancePoor (Not suitable for long-term mineral oil contact)
Acid and Alkali ResistanceGood (Suitable for most weak acids and bases)
Flame Retardant GradeCustomizable UL94 V-0 or standard flame-retardant
Functional FeaturesWaterproof PerformanceGood (IP65~IP67)
Sealing PerformanceGood (Effective against air, liquids, and dust)
Pressure ResistanceMedium (Suitable for doors/windows/automotive, not for high-pressure pipelines)
Processing & InstallationSurface TreatmentSmooth, Textured, Flocked, Sprayed, Adhesive-coated
Installation MethodEmbedded, Clamped, Adhesive, Press-fit
Supply FormRolls (meters), Fixed-length cuts, Closed loops

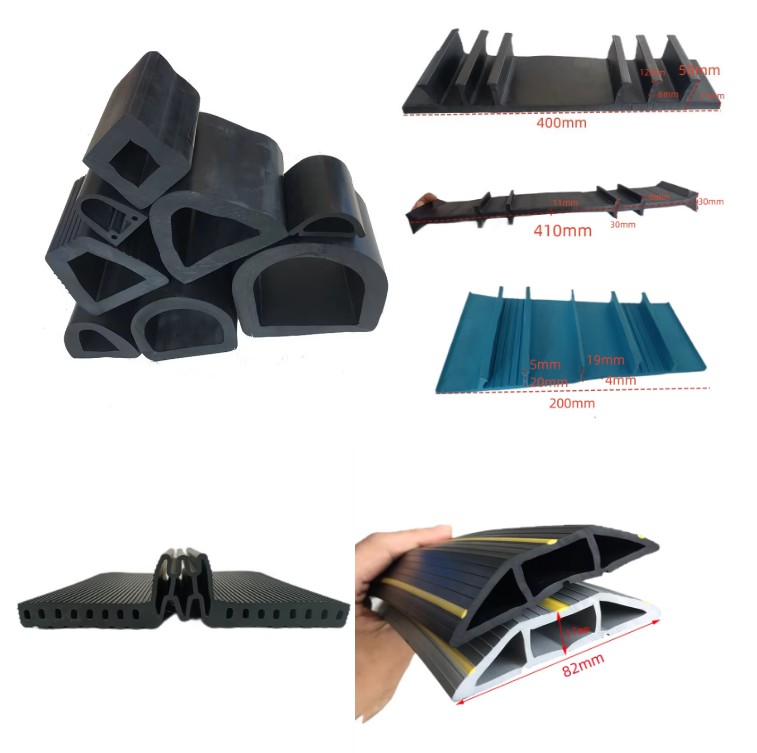

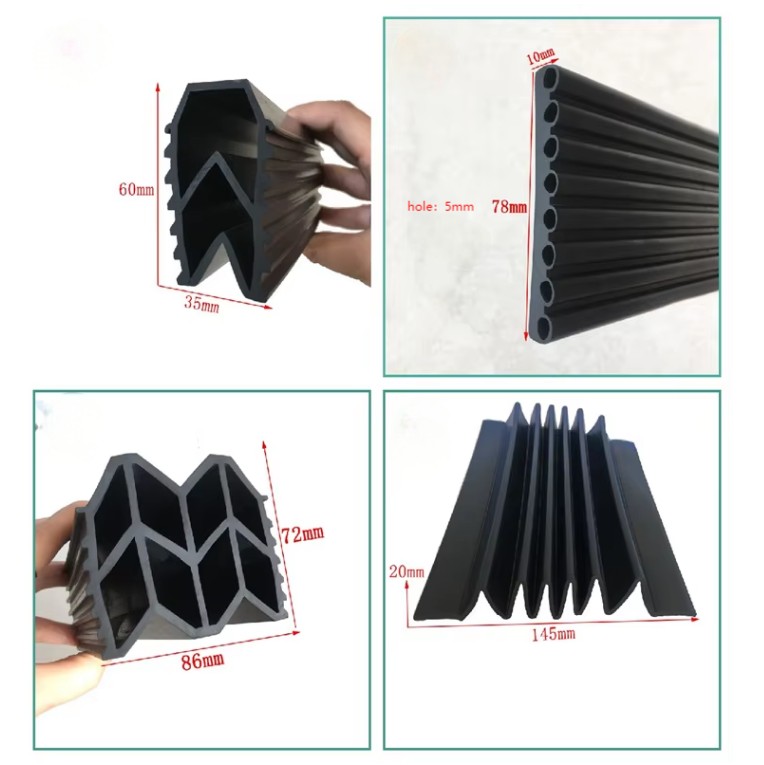

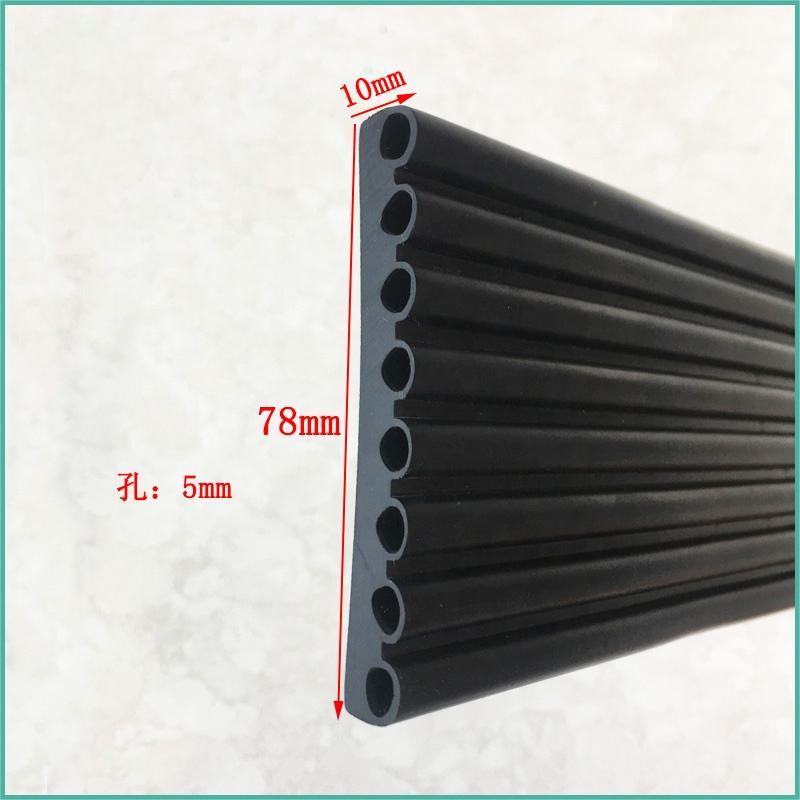

Products sizes


Rubber waterstop,made of quality SBR (styrene butadiene rubber),neoprene rubber or natural rubber,is one of the widest types for concrete structure to prevent liquid leaking in or out.

Generally,designed to be cast in the concrete,rubber waterstops are ideal for applications where high physical properties of rubber are required.

For example,reservoirs,dams and other water retaining or excluding applications with high movements or water pressure.
